NetSkeme inside the wider design workflow
NetSkeme is the cloud-based schematic tool in the VEST software ecosystem. It can be used on its own for browser-based hydraulic schematic creation, or alongside other VEST tools.

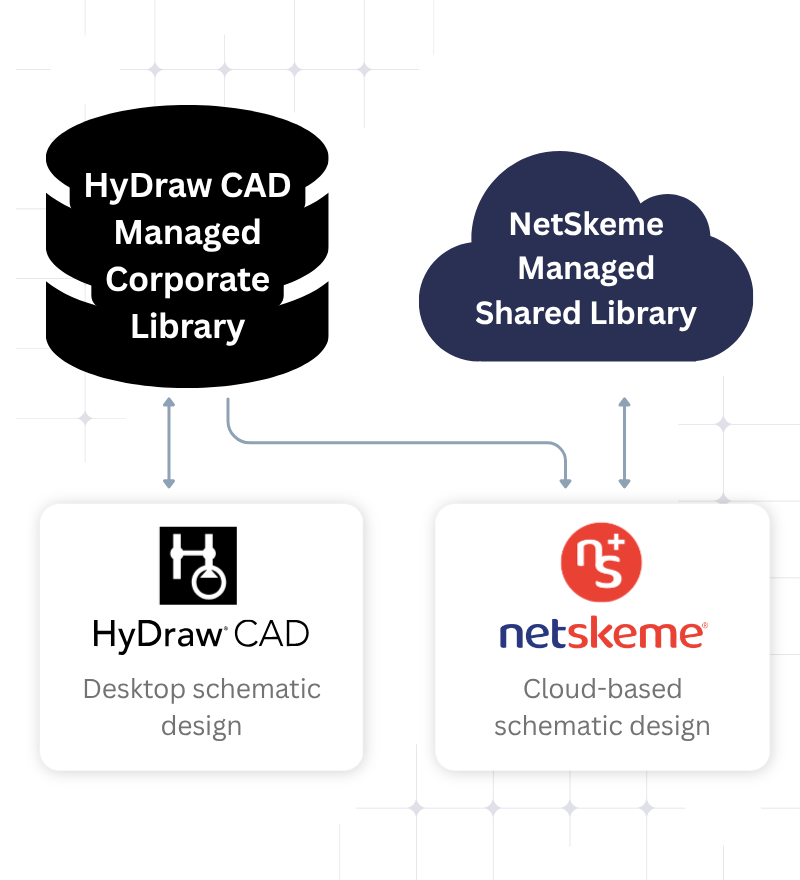

Organization-wide standardization
Set up an enterprise organization to standardize settings, templates, and library organization wide.
Options available for companies with both a pre-existing HyDraw CAD library and those who want to build a library on the cloud using NetSkeme Plus.

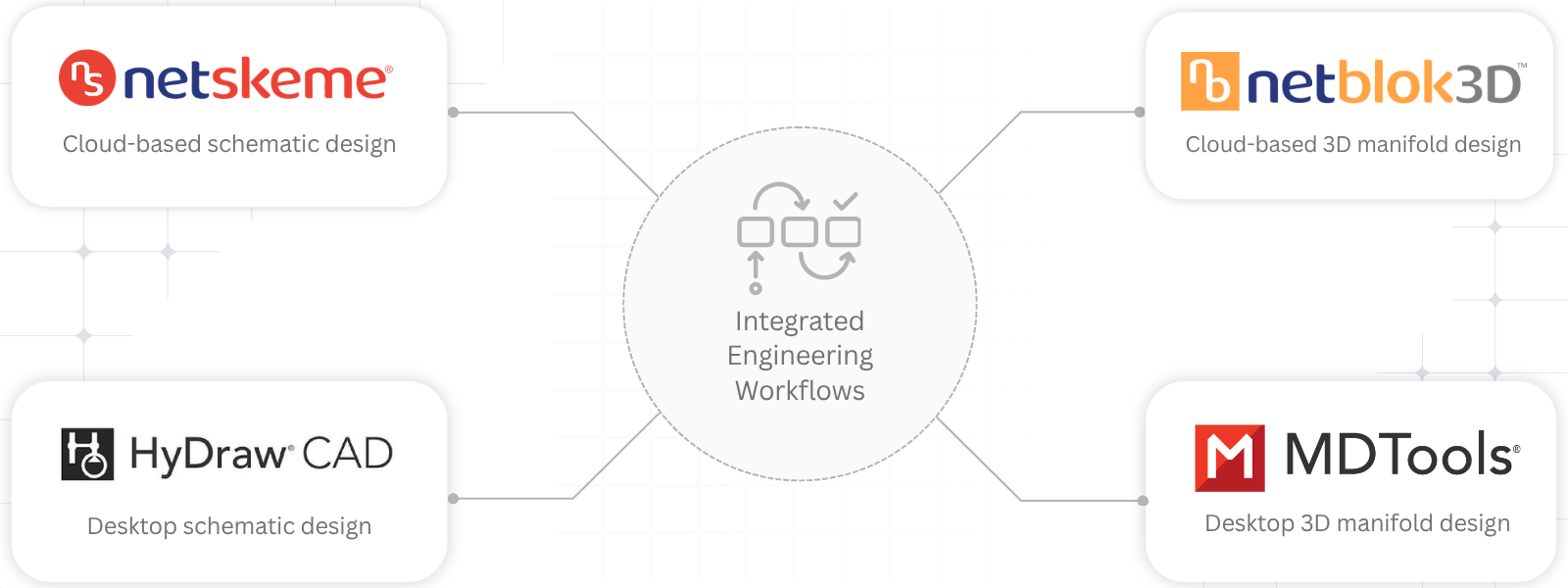

Use NetSkeme independently, or as part of a VEST ecosystem
For many users, NetSkeme functions as a standalone cloud schematic design platform. For organizations already using VEST tools, it can also support shared standards, compatible data, and a more connected engineering process.
Useful across the board
Sales Engineers
Use NetSkeme to quickly lay out a schematic in real time with a customer, and send the design team a smart document with part numbers and model codes pre-linked.
Applications Engineers
Use automatically generated Parts Lists to double check availability with manufacturers and distributors.
Design Engineers
Create a schematic, export an XML, and start work designing a 3D manifold block, with cavity and network information imported from NetSkeme.
