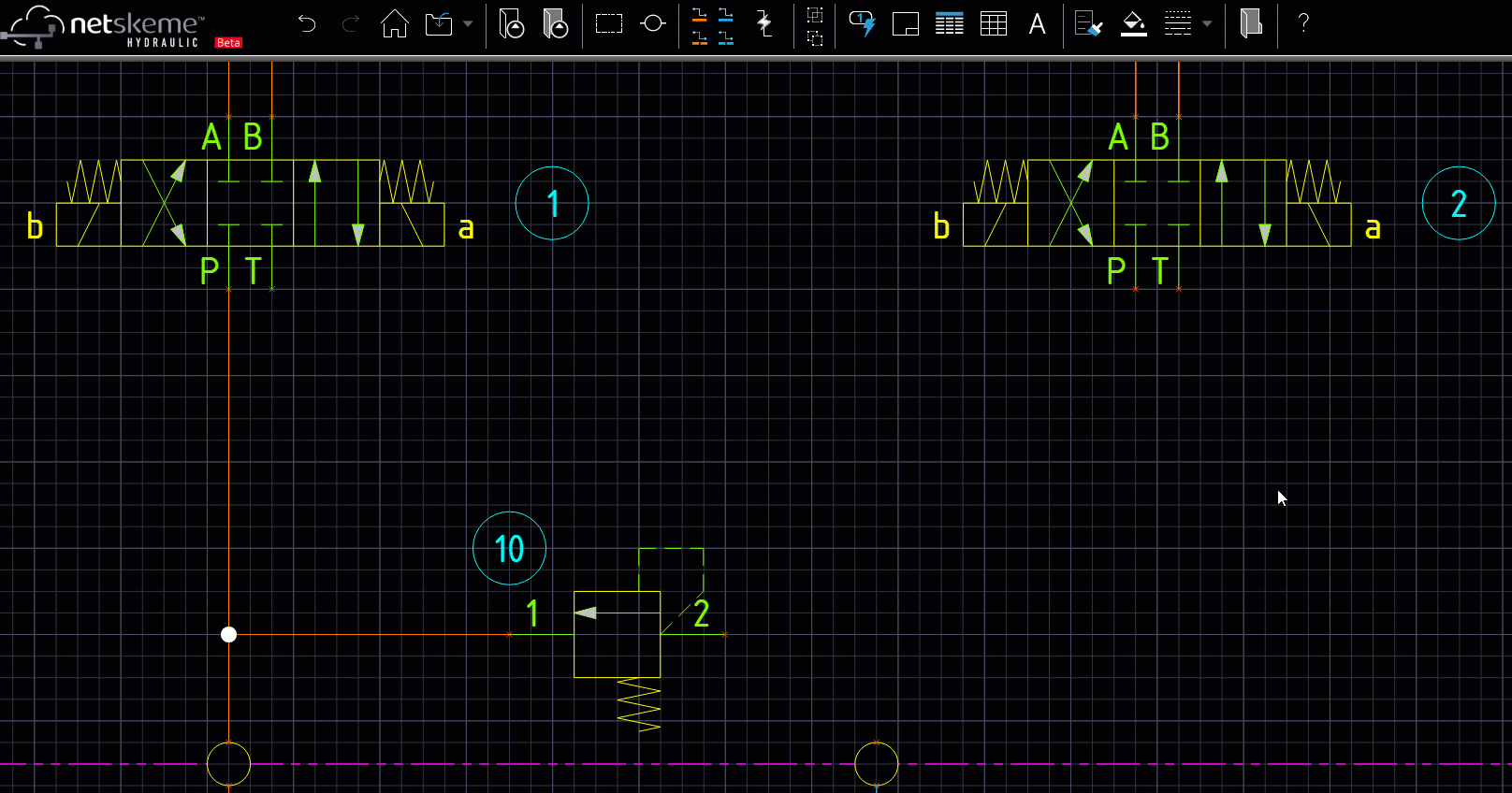

Manual Connections

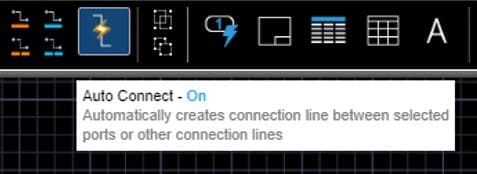

Set AutoConnect to OFF.



Define the desired routing, press ESC when complete.



Manual connection lines route to the grid.

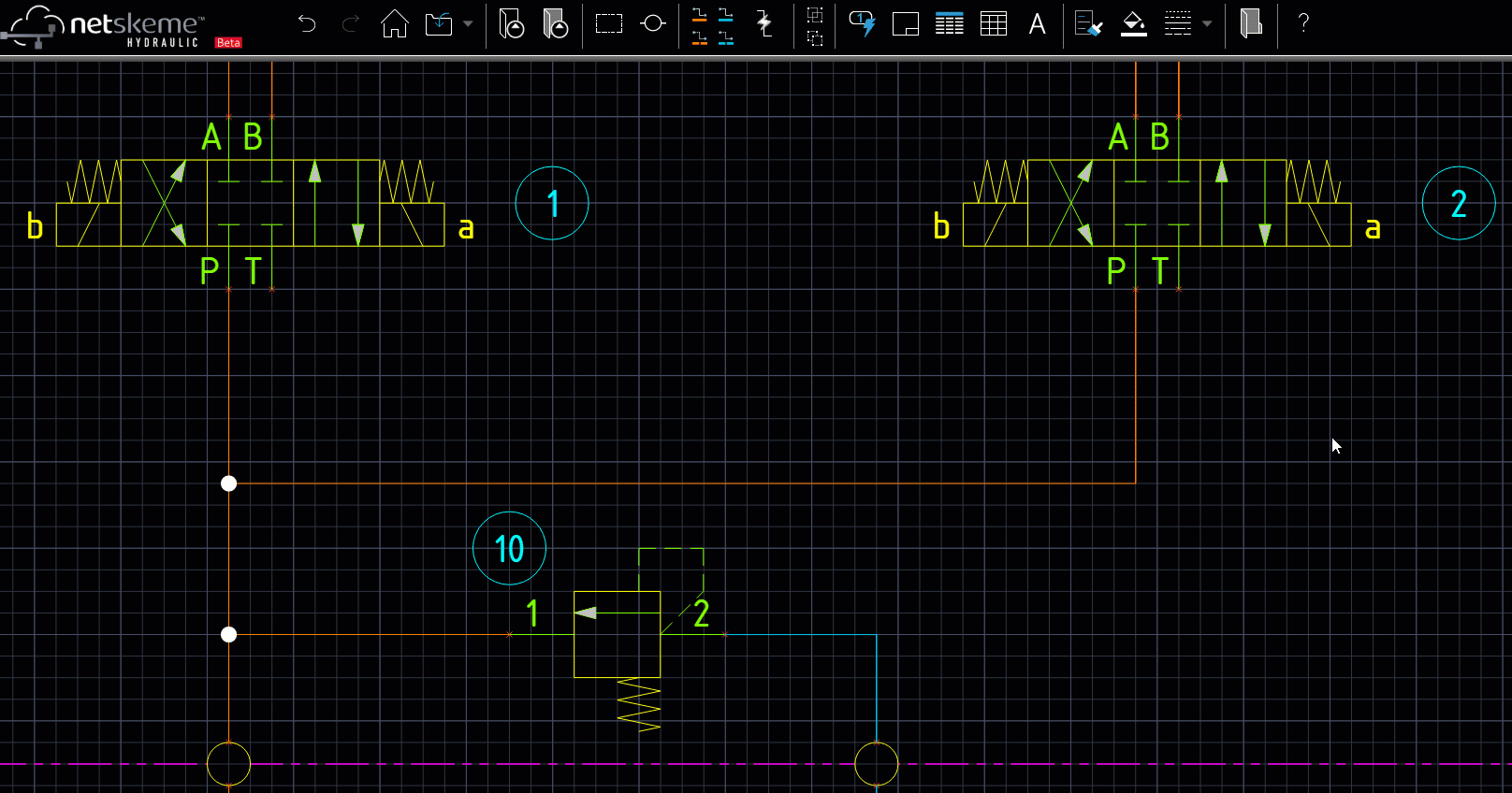

Merge Connections

Join with an existing hanging connection to create a single connection.

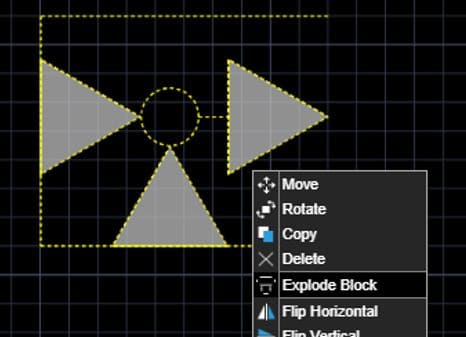

Explode ISO Building Blocks in My Symbol Mode


Symbol Search

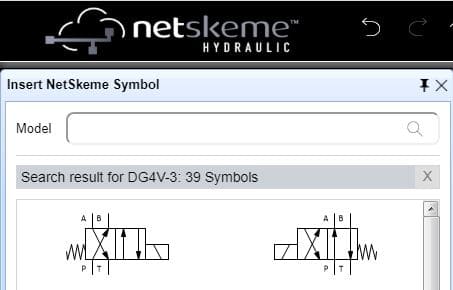

Successful search results displayed within symbol library.

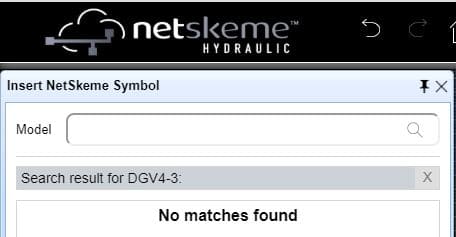

If no results, then No matches found message displays within symbol library.

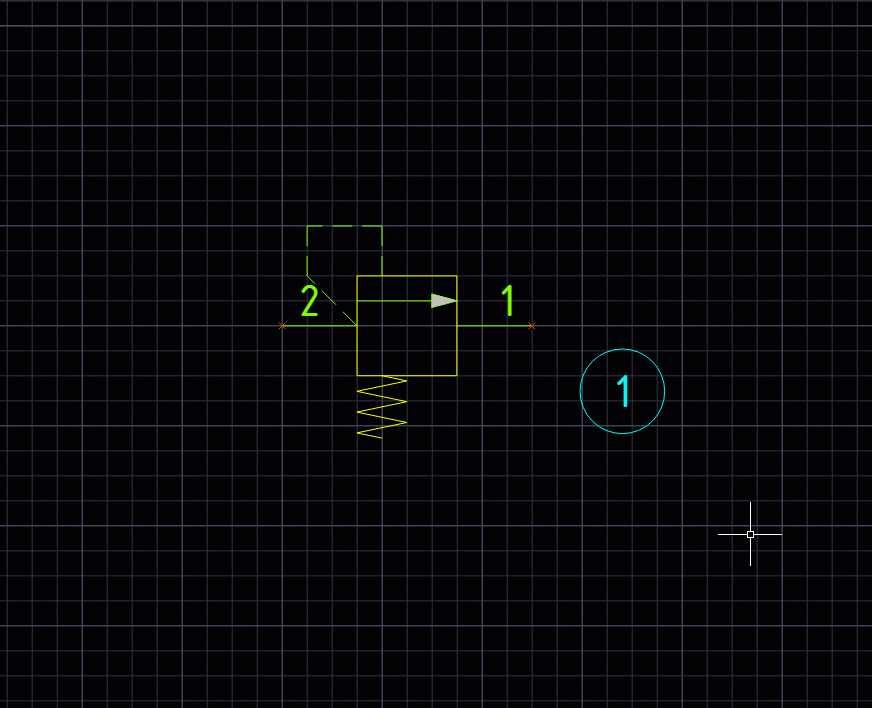

Symbol Rotation

Snap at 0, 90, 180, 270-degree rotation interval.
Port names of rotated symbol maintains vertical position.

Other Enhancements

  • Drafting command stays active when Zoom IN/Zoom Out/Zoom Extents are used.
  • When symbols are copied, only the Cancel command is available on right click.

Bug Resolved

  • Port names do not overlap when a symbol is rotated.
  • When rotating a symbol about its base point, the vertical position of port names are maintained.
  • When inserting certain symbols into drawing, the "Error occurred while reading model properties" issue resolved.
