Build professional hydraulic schematic designs on your browser with enhanced speed, quality and ROI

..

NetSkeme versus Traditional
Diagramming Tools

  • Responsive, intuitive, easy-to-use, and available from any browser
  • ISO 1219-1 compliant hydraulic symbols and AutoCAD compatible
  • Design hydraulic applications, not just diagrams
..

Designed with both BEGINNER
and VETERAN in Mind

  • Very simple, intuitive drag-n-drop hydraulic symbols and intelligent line connections
  • Familiar CAD interface, comprehensive symbol library, and portability with HyDraw CAD and AutoCAD
  • Use pre-defined, proportioned ISO-compliant symbols
..

Achieve PROFESSIONAL Results
at Fraction of Cost

  • Low-cost subscription without the need to invest in expensive CAD packages
  • Easy-to-use user interface to create industry-standard designs in a matter of minutes
  • Conveniently create, edit, and review/approve hydraulic circuits online

NetSkeme is a hydraulic system software designed to make schematic drawing simple and easy. Using hydraulic symbols and data provided within NetSkeme, you can create hydraulic diagrams on your browser with ease. With over 18,000 hydraulic symbols and 64,000 model codes, there is a plethora of hydraulic components you can include on your schematic. No installation is required to use NetSkeme, simply create an account and start designing hydraulic diagrams on your browser.

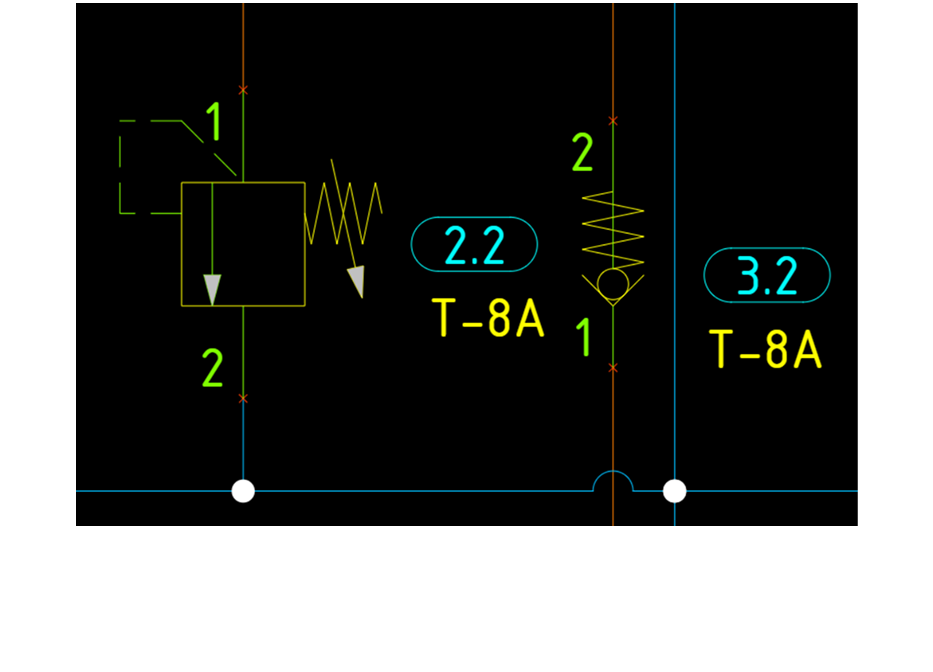

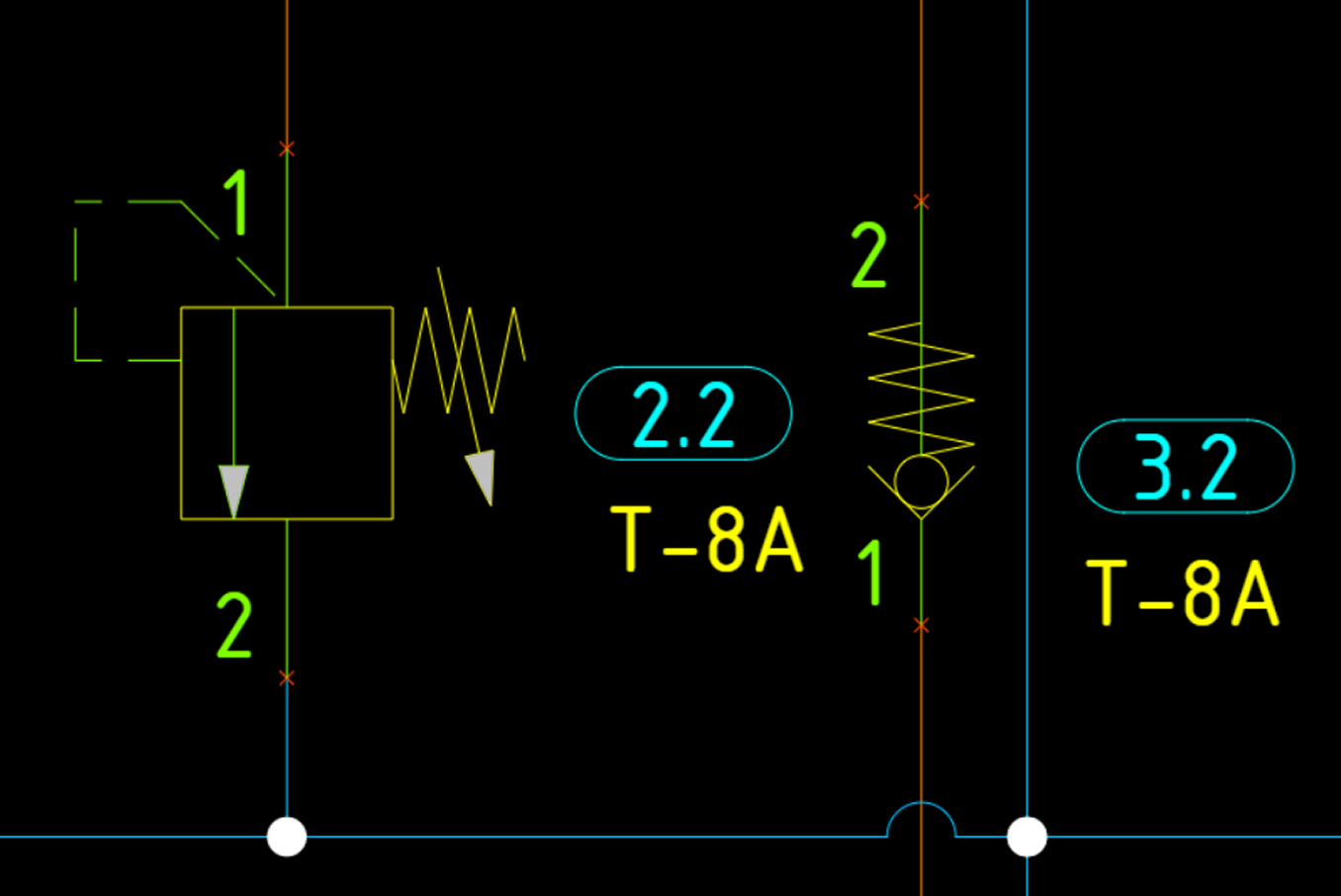

Revising your drawing is simple. NetSkeme’s smart connection lines, automatically re-route and manipulating symbols. Additionally, NetSkeme utilizes the DWG format and allows opening your previously created NetSkeme drawing from the home page for quick revisions!

With full ISO 1219-1 compliancy, drawings will appear professional with no additional effort. Not to mention, a Symbol Build Mode where you can create your own symbols from scratch using ISO compliant building blocks or using one of our pre-built symbols as a starting point.

A 30-day free trial is included with every sign-up that includes all model codes, hydraulic component symbols, and full NetSkeme functionality. Once the 30 day-Trial period has ended, you can choose from two different cost-effective billing options to fit your needs. A responsive support team is available to answer your questions. Email support@netskeme.com or use the feedback section located within the home page
